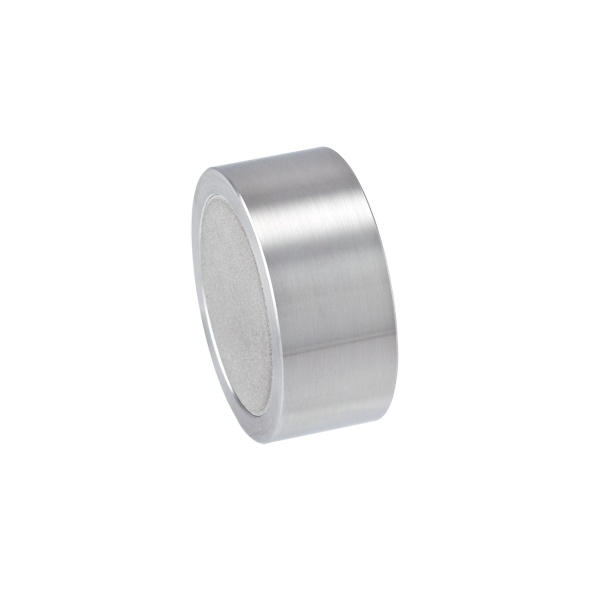

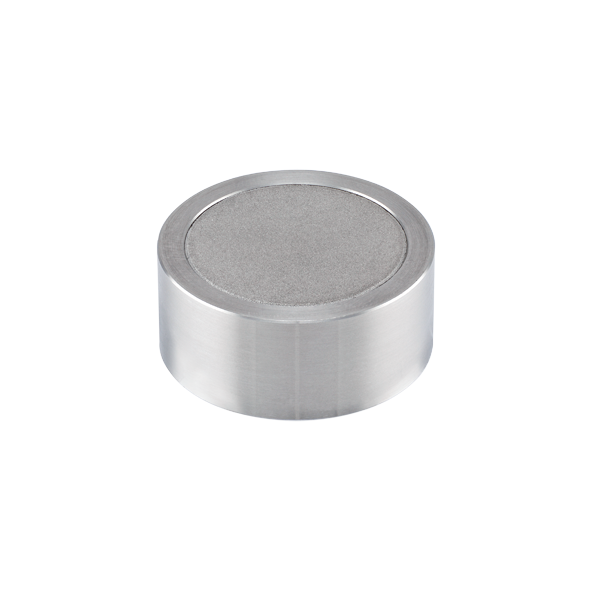

Prep Guard Column Cartridge, RP C4, 5um, 100A. 30mm ID x 10mm Length. Cogent Brand. 1 EA. Special Order Item.
Additional Information:
Cogent RP C4™ Prep Guard Column Cartridges are designed to protect valuable preparative HPLC columns from particulates, strongly retained compounds, and sample contaminants that can reduce column performance and shorten column life. Packed with the same RP C4™ stationary phase used in Cogent preparative columns, these guard cartridges help maintain method consistency while extending preparative column service life. The stationary phase consists of a four-carbon butyl ligand bonded to ultra-high purity silica and is fully double end capped for reproducible reversed-phase performance.
68504-P30-PG1 is a preparative guard column cartridge packed with 5 µm RP C4™ particles featuring a 100 Å pore size in a 30 mm ID x 10 mm format. Designed specifically to protect Cogent RP C4™ preparative columns, the cartridge captures particulates and contaminants before they reach the preparative column bed. Constructed from a stainless steel tube with stainless steel frits, it provides durability and reliable performance in demanding preparative HPLC applications.
Routine replacement of guard column cartridges helps maintain preparative column efficiency, preserve chromatographic performance, and reduce operating costs associated with column replacement. This cartridge is ideal for preparative purification of hydrophobic and neutral compounds used in pharmaceutical, chemical, and research laboratories.
Key Benefits
RP C4™ stationary phase
USP L26 equivalent chemistry
Butyl (C4) bonded phase
Fully double end capped
Ultra-high purity silica support
Protects preparative columns from contamination
Extends preparative column lifetime
Maintains chromatographic performance
5 µm particle size
Durable stainless steel construction
Typical Applications
Preparative HPLC
Compound purification
Fraction collection
Pharmaceutical purification
Hydrophobic compound purification
Neutral compound purification
Process development
Method development
Research and development
Preparative column protection
Specifications
Product Type: Preparative Guard Column Cartridge
Stationary Phase: RP C4™
USP Classification: L26
Chromatography Mode: Reversed Phase
Bonded Phase: Butyl (C4)
Endcapping: Fully Double End Capped
Particle Size: 5 µm
Pore Size: 100 Å
Cartridge Dimensions: 30 mm ID x 10 mm
Construction: Stainless Steel Tube with Stainless Steel Frits
Brand: Cogent
Special Order Item Information
Important Notes
Designed to protect Cogent RP C4™ preparative columns from particulates and contaminants
Helps extend preparative column service life
Maintains preparative column efficiency and performance
Suitable for preparative reversed-phase HPLC applications
Constructed with durable stainless steel hardware
A specialized preparative HPLC system is required for use with 30 mm ID columns
This is a Special Order Item
